Quiz No. 2 Image

Superstudio Perspective

Assignment No. 4

Assignment No. 4 :


1: File - Save as - [Last Name][First Initial]_ARC4058_Assignment_3_[image type, ie. Superstudio Objects, Quattro Punti Installation, etc.]


2: Photoshop: New File - 11" x 17" - Resolution at 200 pixels/inch - Color Mode at RGB Color - 1" Margins


3: Assignment: Draw the Axonometrics from Assignment No. 1 in Rhino and render them with Rhino Renderer.  Then save as a .PNG with no background.  Set all 3 horizontally onto the same Photoshop page.

• Page 1 : Superstudio Objects from Assignment No. 1
• *BONUS*  Page 1 (create a second horizontal row of objects if done) : additional 3 Superstudio Objects from Assignment No. 1 Image 2 (MUST be discernibly  different from the first 3 objects).
• *BONUS*  Page 2 : Create the Quattro Punti Per Una Torre Installation in rhino and edit in Photoshop.  Present 3 side by side images of said object (same setup as Page 1).  First Image is the Rendered Rhino Axonometric. Second Image is the same Axonometric with textures added as per the actual installation.  Third Image is said Textured Axonometric within an environment + 3 people (minimum) added.  Space all 3 objects equally.  For the Third Image, only a partial environment is necessary.  All 3 image are to be completed for credit.

6: Save file(s) as JPEG


7: Post JPEG on Blog (top-right corner : New Post - Insert JPEG - Publish Post!) ONLY if you have any questions pertaining to the assignment.  You do NOT need to post on the blog for this assignment.


8: Email the JPEG to ecalil@fiu.edu  as attachment.


9: Title email + Blogpost : [Last Name][First Initial]_ARC4058_Assignment_4


Due Date:  7-4-12 (Wednesday) by 11:59 PM

Quiz No. 2

Quiz No. 2 :
 Date: 6-30-2012
Time Limit: 1 hour to be received in email.


Instructions


1: File - Save as - [Last Name][First Initial]_ARC4058_Quiz_2 .  Be certain the JPEG file is saved with this format!


2: Be sure Units is on that the PSD (Photoshop) File is an 11" x 17" with 1" margins.


3: Groups: There are no groups for this quiz.  However, the environments + people within each file SHOULD be different.


4: Assignment:

• Insert an environment as your backdrop.
• Draw the object perspective presented in the image (either in CAD or Photoshop) as they are posted on the blog.  (If drawn in CAD, save it as a PDF and bring it into Photoshop.  I, however, recommend drawing it Photoshop due to time constraints.
• "Reflect" part of your environment on the facade of the drawn object. This reflection is to be blurred as in the image.
• Add at least 3 individuals into the environment.
• Shadows as appropriate for the people + object.
• Partly Desaturate the backdrop, people + object to your liking (NOTE: the object and the Backdrop need to have different levels of saturation.  You may also Filter for effects if you have the time. This website has some advice of how to give your image a "vintage feel")
• Make the final product your own!

5: Save to JPEG - Max Quality


6: Submittal: JPEG file shall be submitted to ecalil@fiu.edu before the hour's end




* Note: if you cannot make it to the day of a Quiz, you may make it up the week after.  A more difficult drawing will replace the one of the original date and the same time limit will be given during class time.  If you know that you cannot make it to class on any particular day, please comment below with the date(s) you will be absent and I will do my best to not have a Quiz on that particular date.  Once the date of the Quiz is posted online, it will not change.

Mr. Calil, I am only asking because I am not from here but if it is at all possible to make up the test on Saturday? My parent will be in the keys this weekend and haven't seen them in awhile and I would drive down with my brother who would take me but if not possible to make up the test I will come to class Saturday. Chris Akins

Mr. Calil, what should I do if my PDF files are to large to put into an email, they exceed the limits?

How to do a shadow....a link

Hi,

This is a link that might by useful if you do not know how to do a shadow. (For assignment #3)

http://www.youtube.com/watch?v=5vcqPuTHVm8

Joanna

NunesE_ARC4058_Assignment_3

Rough Draft: SanchezE_ARC4058_Assignment3_Nature

Modified Elevs. from Assign. 2

SanchezE_ARC4058_Assignment2_Elevations

Assignment_3

Is there anything I can do to improve these professor?

AlmodovarE_ARC4058_Assignment_2_Elevations

Corrections

Assignment3_Questions

Professor Calil, How is this coming out? I'm not sure I understand how to create the reflection. Not sure what to do after "selecting inverse". I am also confused as far as how to "pop out" the mullions in the window.

Thank you!

NunesE_ARC4058_Assignment_2

Re-done

Assignment 3 question windows

Hello Eduardo,
When creating the windows how to do we do so that the mullions stay on front of the glass? I think that I missed it when you explained that part. Do we create four glass panels with the pen tool ?

Thank you

Catherine

Quiz No. 1 Images (Make-up)

Project: Climate Protection Supermarket

Architect: Love Architects

Sample Image

Assignment No. 2 Grades

Here are the Grades for Assignment #2  If you see a red mark to the right of your grade, come see me to read the remark in order to boost up your grade.  The resubmitted Assignment #2 must be turned it by the time Assignment #3 is due.

SanchezE_ARC4058_Assignment2pt2

Franco MariaVictoria_ARC4058_Assignment_2_Part_2_2

Franco MariaVictoria_ARC4058_Assignment_2_Part_2_1

Malebranche,S_ARC4058_Assignment_2

IjewereE_ARC4058_Assignment_2

Is there anything I should change?

Questions_Layers

Professor Calil, How does this all look? I am a bit confused as far as the layers. Should we name the elevation (i.e Front, Back, Sides?). Let me know. Thanks!

NunesE_ARC4058_Assignment_2

Elevations

IjewereE_ARC4058_Assignment_2

I corrected the scale and a few of the line weights. Is there anything else I'm missing out?

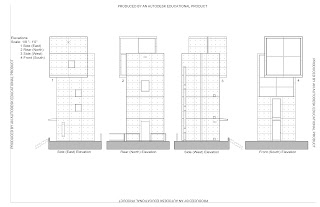

PerryH_ARC4058_Assignment_2_[Elevations]-Draft

Does everything look ok?

IjewereE_ARC4058_Assignment_2

Is there anything else I should add or something I need to correct.

Asignment 2- part 2 --QUESTION

Do we put in one page the site plan and the four elevations, or do we do one page for site plan and one page for elevations?

PerryH_ARC4058_Assignment_2_[Site Plan]

Does everything look ok?

Assignment No. 3 :

Assignment No. 3 :


1: File - Save as - [Last Name][First Initial]_ARC4058_Assignment_3_[setting type, ie. Natural Setting]


2: New File - 11" x 17" - Resolution at 200 pixels/inch - Color Mode at RGB Color


3: Assignment: Insert Front Elevation from Assignment No. 2 and scale each to work within 3 different Settings

• Setting 1: Natural Setting (no buildings around)
• Setting 2: Urban Setting (between 2 buildings)
• Setting 3: Nighttime Setting (urban setting at night)
• *BONUS*   Insert Assignment No. 2 Axonometric (just the building) in an aerial view (at 45 degrees) setting.

4: Label Each Drawing - ie. Front Elevation in a Natural Setting - Front Elevation in an Urban Setting -Front Elevation Nighttime Setting




5: Things added to each Photoshopped Elevation:

• 3 Photoshopped people (minimum) in and around the Elevation (the same 3 may be used for each elevation)
• Shadows of building with respect to where the setting light is coming from
• Glass Layer @ windows / doors (@ 15% opacity)
• Reflection on glass of surrounding environment (@ 10% opacity)
• Concrete layer on building
• Organized Layers in Photoshop file

6: Save file as PSD (Photoshop Document) - Save file as PDF


7: Post JPEG on Blog (top-right corner : New Post - Insert JPEG - Publish Post!) ONLY if you have any questions pertaining to the assignment.  You do NOT need to post on the blog for this assignment.


8: Email the PDF to ecalil@fiu.edu  as attachment.
  Email the PSD (Photoshop file) as a link from your Dropbox file in the same email.


9: Title email + Blogpost : [Last Name][First Initial]_ARC4058_Assignment_3


Due Date:  6-13-12 (Wednesday) by 11:59 PM


Sending the cad files?

When sending the cad files, do we do a separate file for the elevations and a separate for the site plan? or we do both in one file?

Cummings_B_Arc4058_Assignment_2_(Axonometric)

MartidD_ARC4058_Assignment_2_SitePlan(QUESTIONS)

Any mistakes or anything i can do to improve my grade?

Problem with elevations scale

when plotting in 1/8 is way too big for the paper. but in 1/16 is too small. I used 3/32. Is that fine?

NunesE_ARC4058_Assignment_3

Site plan

Cummings_B_Arc4058_Assignment_2_(Elevations)

Cummings_B_Arc4058_Assignment_2_(Site Plan)

MartinD_ARC4058_Assignment_2_ELEVATION QUESTIONS

I used the 1/16th scale because I could get the image to fit when using 1/8th scale. Is this ok? Also is there anything else I can do to improve my drawings?

HiegemannV_ARC4058_Assignment_2(Site Plan)

NunesE_ARC4058_Assignment_2

Redone

Quiz No. 1 Images (Group B)

Project: Saitama House

Architect: Satoru Hirota Architects

Sample Elevation

Quiz No. 1 Images (Group A)

Project: Infill Homes

Architect: John Dwyer

Sample Elevation
